English2FHD0225
● Support 2-level topology
● Soft shut down, UVLO, Miller clamping
| Product | Power Device | Gate Voltage | Gate Turn-on Voltage | Gate Turn-off Voltage | Rgon(Ω) | Rgoff(Ω) | Coating | Temperature-Operating(Max) | Temperature-Operating(Min) |
|---|---|---|---|---|---|---|---|---|---|
| 2FHD0225C17A22-S0000 | SiC | 18/-4 | 18 | -4 | 3.3 | 3.3 | No | 85℃ | -40℃ |
| 2FHD0225C17A22-S0001 | SiC | 18/-4 | 18 | -4 | NC | NC | No | 85℃ | -40℃ |
| 2FHD0225C17A22C-S0000 | SiC | 18/-4 | 18 | -4 | 3.3 | 3.3 | Yes | 85℃ | -40℃ |
| 2FHD0225C17A20-S0000 | SiC | 15/-5 | 15 | -5 | 3.3 | 3.3 | No | 85℃ | -40℃ |
| 2FHD0225C17A20-S0001 | SiC | 15/-5 | 15 | -5 | NC | NC | No | 85℃ | -40℃ |
| 2FHD0225C17A20C-S0000 | SiC | 15/-5 | 15 | -5 | 3.3 | 3.3 | Yes | 85℃ | -40℃ |
| 2FHD0225C17A20-Y0001 | IGBT | 15/-5 | 15 | -5 | NC | NC | No | 85℃ | -40℃ |
Product Information

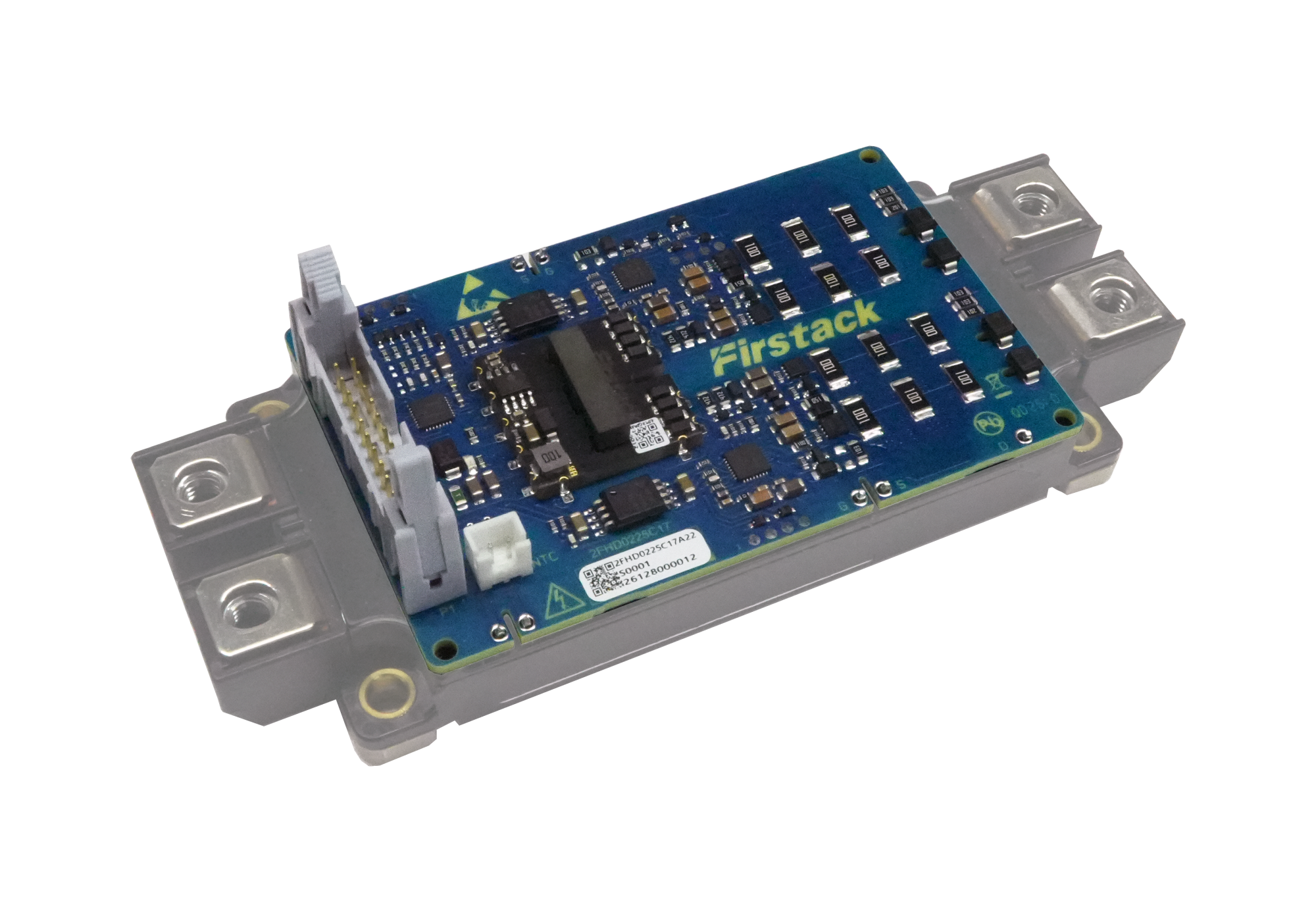

The 2FHD0225 series drivers are high-performance dual-channel, plug-and-play gate drivers independently developed by Firstack based on proprietary intelligent-chip technology. They are designed for EconoDUAL™ modules with voltage ratings up to 1700 V.
Each channel supports up to 2 W output power and integrates comprehensive protection functions as well as intelligent fault diagnosis and feedback capabilities, ensuring high reliability and safe operation in demanding power electronics applications.
Compact and Highly Integrated
Gate driver for EconoDualTM modules
Dual-channel
15~20.5V positive gate voltage
-9.5~-0.5V negative gate voltage
2W output power per channel at maximum ambient temperature
25A gate peak current
Electrical interface
-40°C to 85°C operating ambient temperature
Distributed NTC sampling
Protection
Short-Circuit Protection (Soft Shut Down)
UVLO
Miller Clamping
Intelligent Fault Management
