Photovoltaic

Solar energy, as a crucial renewable resource, has been continuously fostering advancements within the photovoltaic sector, while the pursuit of high efficiency and reliability in photovoltaic technologies has remained a persistent challenge. A highly compact drive structure design has been realized through Firstack’s next-generation ASIC platform, significantly simplifying the development process of integrated modules while effectively mitigating system failure risks.

Part Number	Application	Description	Max Breakdown Voltage	Power Switch
2FSC0110	Photovoltaic Energy Storage System	● Dual channel, 1W / 10A ● Support 2-level, T-type 3-level, NPC I-type 3-level ● No protection	1200V	IGBT

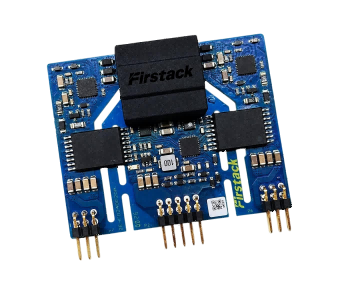

2FHC06M33XX	Rail Photovoltaic Wind Power	● Dual channel, 6W ● Support 2-level topology ● Soft shut down, Undervoltage, Miller clamping, Isolate NTC sampling, Intelligent fault management	3300V	SiC MOSFET

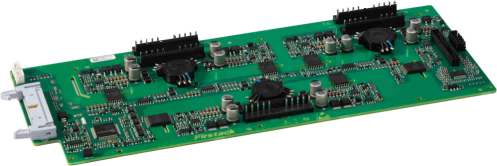

ED-WP-CB	Photovoltaic Wind Power Energy Storage System	● 4W / 110A, for EconoDual module ● Multi-parallel of 3-level NPC/ANPC topology ● Soft shut down, Undervoltage, Fault sequence, NTC detection	1700V	IGBT

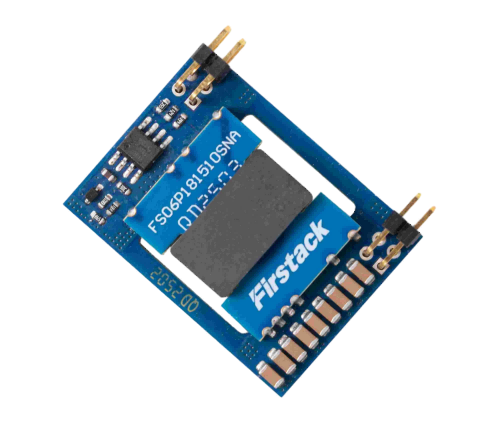

FS06P	Photovoltaic Motor Drives Other Industrial Energy Storage System	6W SM isolated DC/DC converter with 8pF coupling capacitance, 9mm creepage distance, 9mm clearance distance	1200V	IGBT, Si/SiC-MOSFET

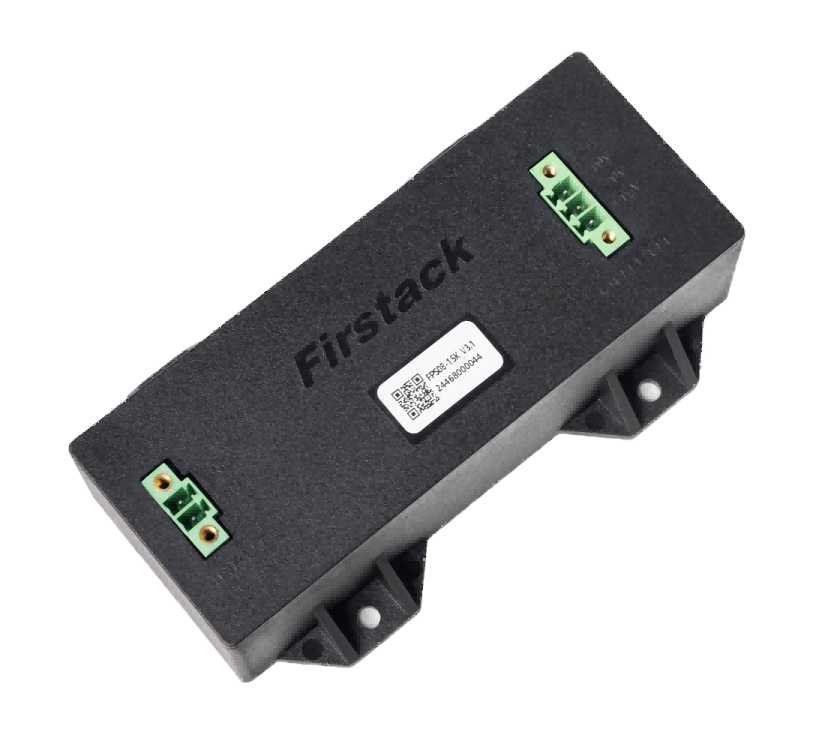

FPS08-15K	Rail Photovoltaic Motor Drives Energy Storage System	8W isolated DC/DC converter with 5pF coupling capacitance, 60mm creepage distance	6500V	IGBT
