| Product | Input Voltage | Output Voltage | Dimensions | Viso (5mA@1min) | Package | Support Module Package |
|---|---|---|---|---|---|---|
| 2FS04P1218MNA | 12V | 18V | 15mm*21mm | 6.5kVac | SMD | TO247, Easy, 34mm, ED/62mm, etc. |
| 2FS04P1222MNA | 12V | 22V | 15mm*21mm | 6.5kVac | SMD | TO247, Easy, 34mm, ED/62mm, etc. |
| 2FS04P1518MNA | 12V | 18V | 15mm*21mm | 6.5kVac | SMD | TO247, Easy, 34mm, ED/62mm, etc. |
| 2FS04P1522MNA | 12V | 22V | 15mm*21mm | 6.5kVac | SMD | TO247, Easy, 34mm, ED/62mm, etc. |
Product Information
Product Details

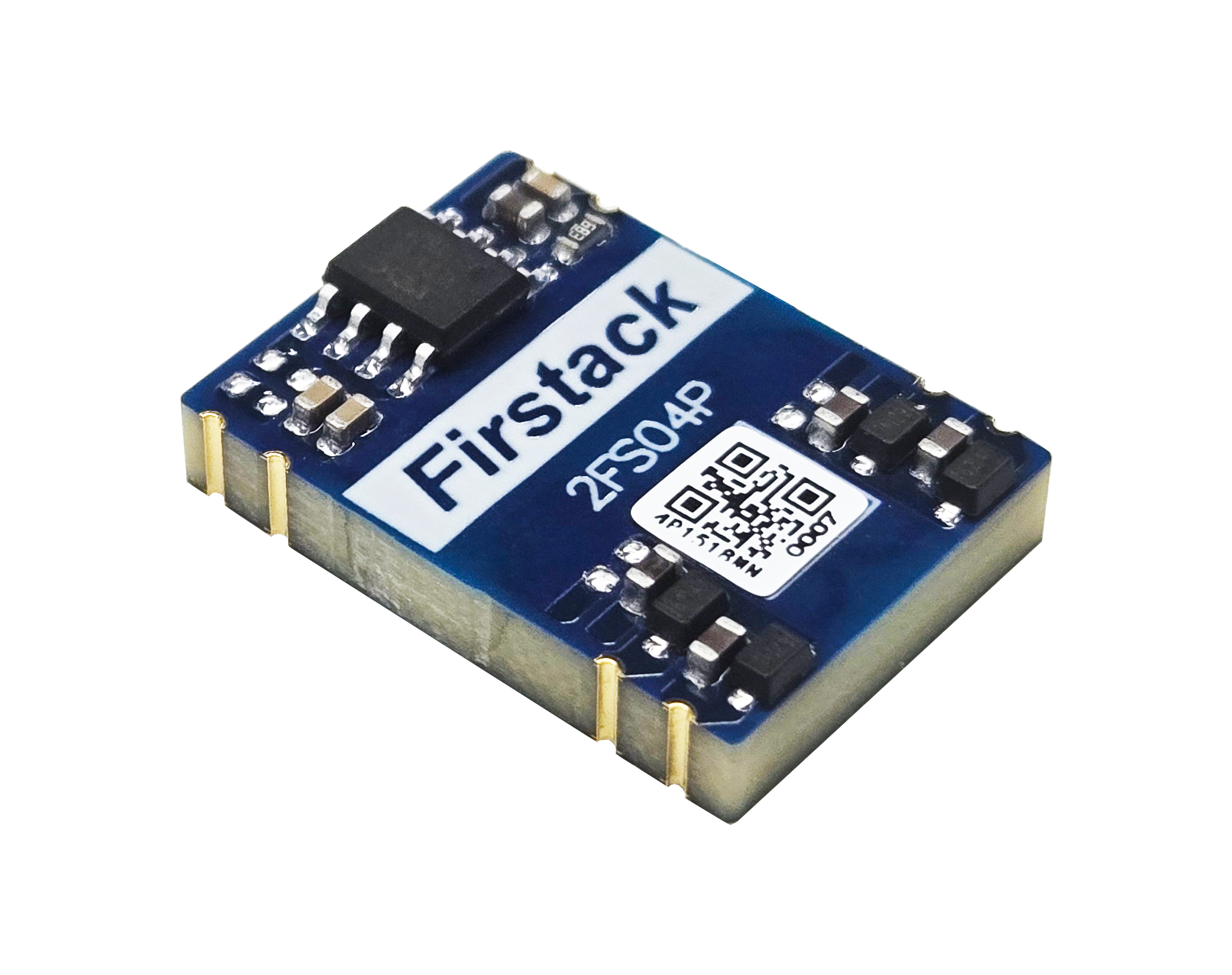

The 2FS04P series is a DC-DC converter specifically designed to drive single IGBT/SiC&MOSFET or bridge. This series has the ability to output multiple asymmetric voltages, and provide the best driving efficiency for the system. The FS02P series has high insulation withstand voltage, operating temperature, and efficiency, and is suitable for industrial grade motor drives, inverter circuits, and energy storage systems.
Configurable and Highly Reliable
6.5kVDC isolation volatge
Reinforced EMC
Protection
Input under-/over-voltage protection
Output over-current/short-circuit protection
Over-temperature protection
