| Part number | Input voltage | Output voltage | Dimensions |
|---|---|---|---|
| 1FS02P1219MNA | 12V | 19V | 25.5mm*13.8mm*5.2mm |
| 1FS02P1222MNA | 12V | 22V | 25.5mm*13.8mm*5.2mm |
| 1FS02P1519MNA | 15V | 19V | 25.5mm*13.8mm*5.2mm |
| 1FS02P1522MNA | 15V | 22V | 25.5mm*13.8mm*5.2mm |
Product Information
Product Details

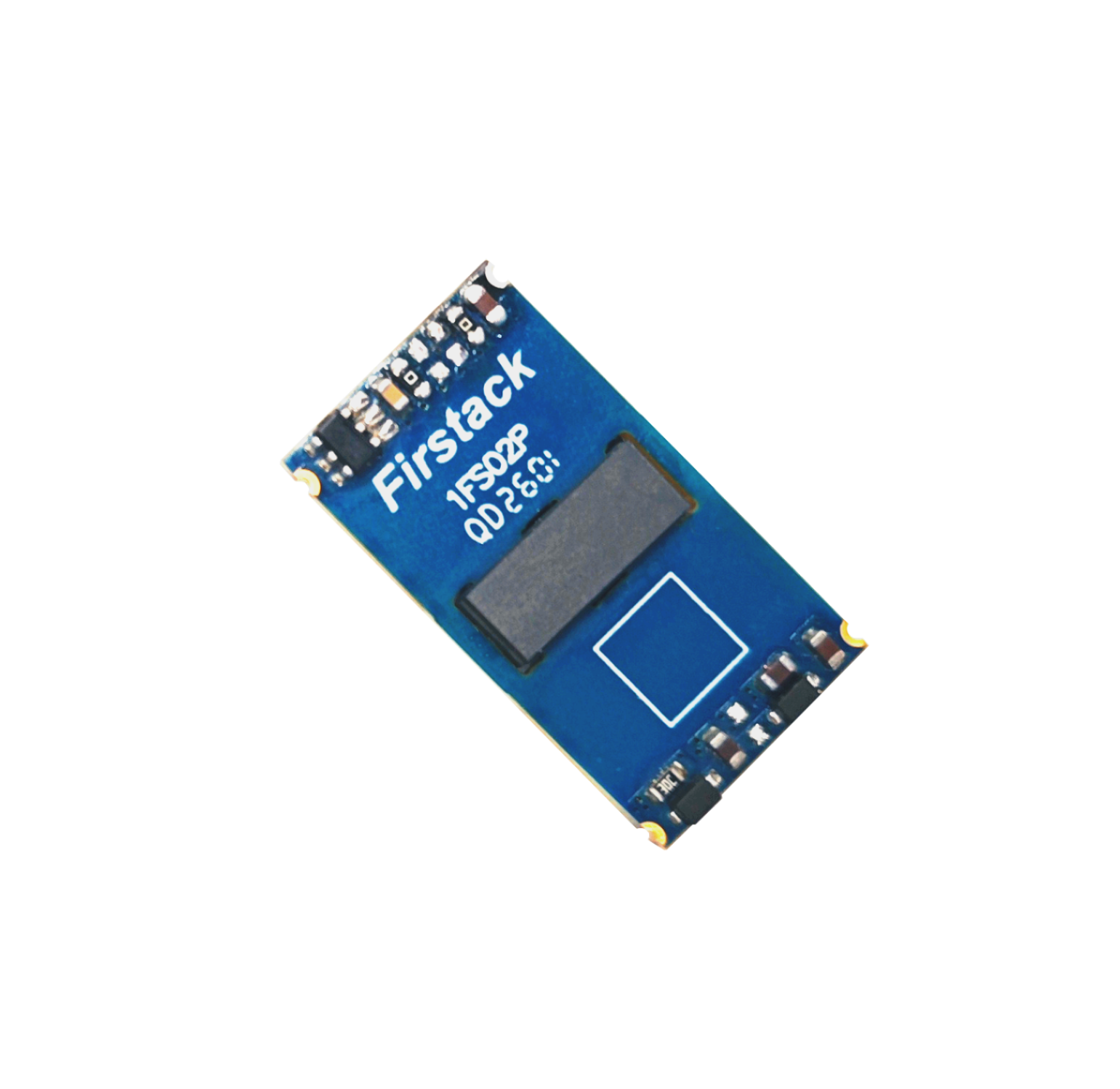

1FS02P is a single-output isolated DC/DC power supply based on a planar transformer design
and compliant with reinforced insulation (UL 61800) requirements. It is mainly used for gate drivers
and can perfectly match various SiC MOSFET and IGBT applications.
- UL 61800 Compliant
- Compact size, meeting the requirements of various application conditions
- 12V/15V Input
- 19V/22V Output
- PD Test Evaluated
- Max. test voltage 8.5kVac
- SMT process, supporting reflow soldering
- Short circuit/Over temp. protection integrated
